Helical Pile Drive Head Rental for the London, ON Area
Equipment Rental Brothers offers helical pile drive head rental for the London, ON area with both 5,000 ft-lb and 12,000 ft-lb hydraulic drive heads for contractors, builders, and experienced owner-operators who need to install helical piles without hiring a specialty installer for every project. These are specialty hydraulic torque heads used for helical piles, screw piles, and helical anchors in deck foundations, dock installations, home additions, underpinning, and structural support work.
Available for half-day, full-day, multi-day, and weekly rentals from our Otterville, ON yard, these are the same Foundation Brothers-grade tools used on real structural projects.
What Is a Helical Pile Drive Head?

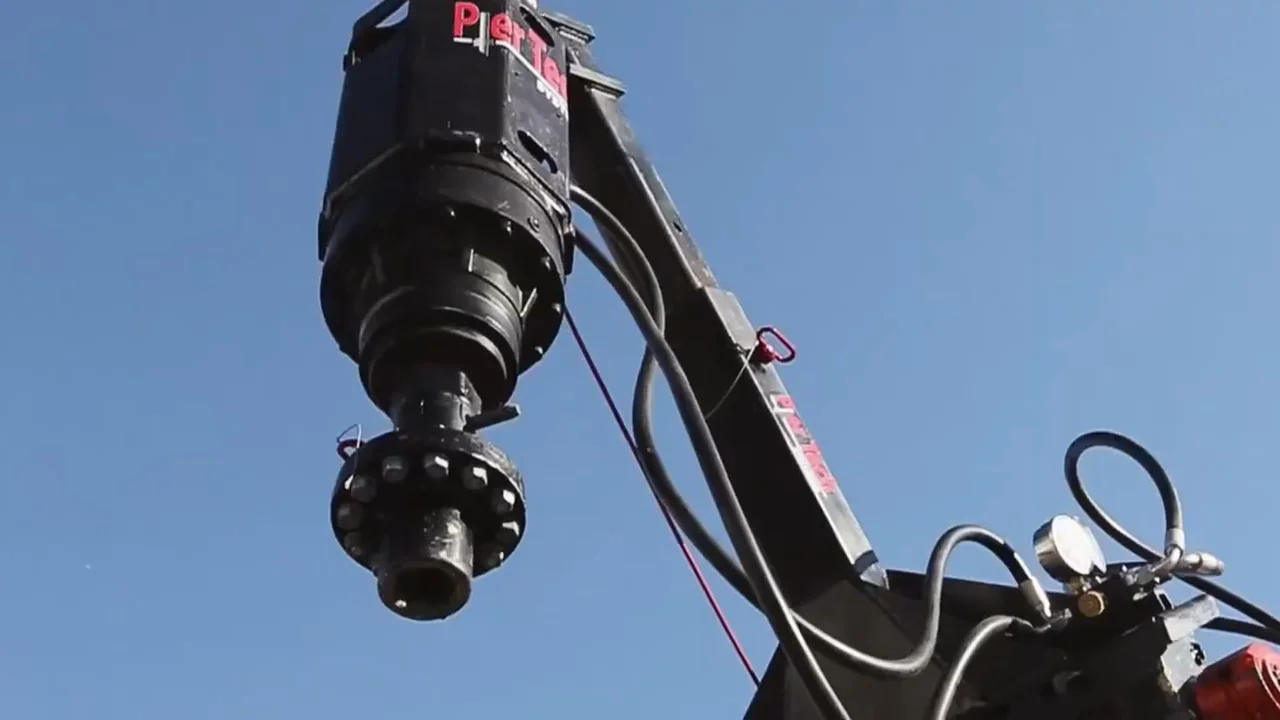

A helical pile drive head is a hydraulic rotary attachment that mounts to the auxiliary circuit of a compatible excavator or skid steer and applies controlled torque to screw a helical pile into the ground. It provides the rotational force needed to install the pile to the required depth and torque target.
5K vs. 12K Torque Head
The key difference between the two heads is installation torque:
- 5K drive head: best for residential decks, docks, fence lines, and lighter structural applications
- 12K drive head: best for home additions, underpinning, larger dock systems, deeper installations, and harder soil conditions
Common Applications
Helical pile drive heads are commonly used for:
- residential deck foundations
- dock and marine structure foundations
- home additions and secondary structures
- fence lines and gate posts
- foundation underpinning and repair piles
This equipment allows fast foundation installation without excavation or concrete cure time, provided the project has been properly planned and specified.
- 5K Drive Head Max Torque: 5,000 ft-lb
- 5K Best For: Residential decks, docks, fence lines, light structures
- 5K Compatible Machines: KX-018, KX-033, U27, U35, SCL-1000
- 12K Drive Head Max Torque: 12,000 ft-lb
- 12K Best For: Home additions, underpinning, heavier structural work
- 12K Compatible Machines: KX-033, U35, KX-040, SVL-70
- Hydraulic Connection: Auxiliary circuit with quick-connect
- Pile Shaft Compatibility: Standard 1.5-inch and 1.75-inch square bar shaft
- Torque Monitoring: Inline torque gauge included
- Rotation: Reversible for installation and extraction
The included inline torque gauge allows real-time monitoring during installation, which is important for confirming target torque and load capacity.
Book
What Is a Helical Pile Drive Head?
A helical pile drive head is a hydraulic rotary attachment that mounts to the auxiliary circuit of a compatible excavator or skid steer and applies controlled torque to screw a helical pile into the ground. It provides the rotational force needed to install the pile to the required depth and torque target.
5K vs. 12K Torque Head
The key difference between the two heads is installation torque:
- 5K drive head: best for residential decks, docks, fence lines, and lighter structural applications
- 12K drive head: best for home additions, underpinning, larger dock systems, deeper installations, and harder soil conditions
Common Applications
Helical pile drive heads are commonly used for:
- residential deck foundations
- dock and marine structure foundations
- home additions and secondary structures
- fence lines and gate posts
- foundation underpinning and repair piles
This equipment allows fast foundation installation without excavation or concrete cure time, provided the project has been properly planned and specified.
Equipment Rental Brothers in Otterville offers both 5,000 ft-lb and 12,000 ft-lb helical pile drive head rentals for short-term use.
For many standard residential deck foundations, the 5K drive head is the practical starting point. Larger or more demanding structural work may require the 12K.
Permit requirements depend on the project and municipality. Decks attached to dwellings, home additions, and structural applications often require permit drawings and engineering.
The 5K head fits lighter compatible excavators and carriers. The 12K head is best with larger excavators or skid steers that can manage higher torque demand.
Yes, if you have the proper equipment, project planning, pile supplier coordination, and enough knowledge to install to the required torque and depth.
